FENIX
Published in 21/12/2020
Pompa di calore geotermica da 6 a 33kW
Fenix hybrid heat pump
Hybrid heat pump for conditioning and DHW production
Fenix is the (DC) inverter heat pump system that is ideal for providing air-conditioning to homes or small businesses.
This Fiorini hybrid heat pump system simultaneously combines direct expansion terminals with hydronic terminals.
In addition, Fenix, produces domestic hot water through heat recovery, without interrupting the cooling cycle.
The added value offered by the Fenix system is in overcoming the classic constraints of a heat pump: heating or cooling by using hydronic terminals and direct expansion terminals simultaneously. And what is more, as the system cools, it produces free domestic hot water.
The hybrid heat pump system is created by simply combining an F-ext outdoor unit and some indoor units selected from the F-idro hydronic module, F-tank units for DHW and F-wall or F-duct direct expansion indoor units.
FEATURES
Power range
From 5 to 14 kW
Energy class
A++/A+
COP
Greater than 4
Tax Incentives
Italian “Conto Termico 2.0” scheme and 65% tax credit
Modular system
Up to 45 combinations based on the needs
Operational limits
-32°C + 50°C
DHW temperature
Up to 75°C when cooling and 55°C when heating
Supplementary items
Thermal solar system or water heater management
Usage
Conditioning and DHW with air-water heat pump
ADVANTAGES
The Fenix hybrid heat pump, an inverter heat pump system for conditioning and for DHW production with heat recovery, offers various significant advantages that make this a complete, incredibly innovative, highly efficient, high quality product for conditioning residential or small service sector spaces and to produce domestic hot water.
The main advantages of the Fenix hybrid heat pump are:
- Fast and effective cooling
- DHW production and heat recovery
- Dehumidification
- Ease of installation
- Immediate heating through natural convection
- Greater distance between outdoor unit and terminals
- Maintenance free
- System operation and simultaneous DHW production
- Free DHW in summer
COMPONENTS
Fiorini has additional components for the Fenix hybrid heat pump system. There are five units, indoor and outdoor, which are indispensable in completing the Fenix inverter heat pump system and in offering the customer a conditioning system that also produces domestic hot water.
| Component | Descrizione |
|---|---|
| F-EXT | Unità esterna per sistemi combinati idronica/esp. diretta, da mono a penta split. Hanno una porta dedicata al collegamento con F-tank, per la produzione e stoccaggio di acqua calda sanitaria |
| F-IDRO | Unità interna che alimenta i terminali idronici, quali impianti radianti a pavimento, parete o soffitto, radiatori a bassa temperatura e ventilconvettori |
| F-TANK | Unità per la produzione di ACS tramite recupero di calore e stoccaggio di energia nell’accumulo vetroporcellanato incorporato di capacità 200 o 300 litri |

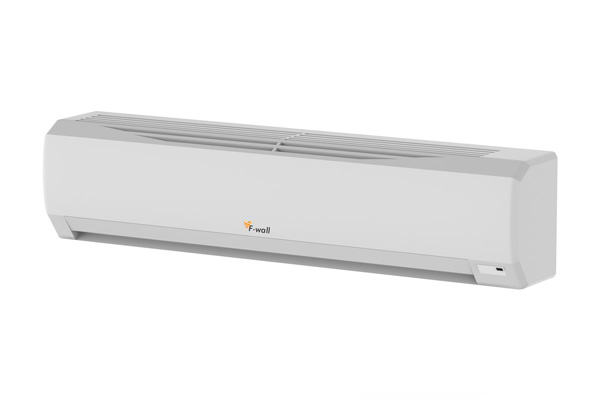

| F-WALL | Unità interne a espansione diretta per installazione disponibile in 2 taglie |

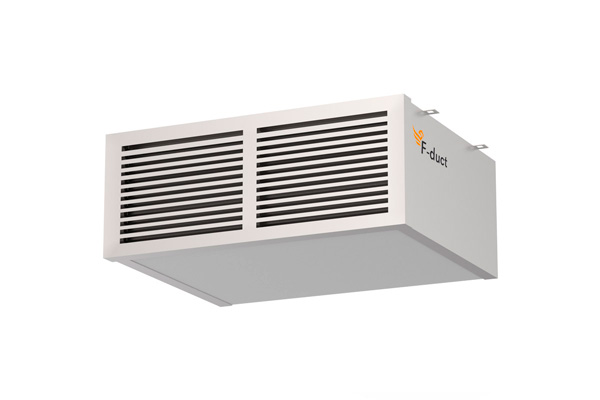

| F-DUCT | Unità interna a espansione diretta canalizzabile. Disponibile plenum 3 vie |
EXAMPLE CHART
| 1 Outdoor unit of the Fenix system, F-Ext series | 2 Indoor unit of the Fenix, F-idro |
| 3 Indoor unit of the Fenix system, F-tank 200/300 with E-MIX module at the base | 4 Solar thermal recovery unit, S2 SOLAR 30 module |
| 5 Fiorini H 2000 solar thermal collectors | 6 MINI HC inertial storage tank (or hydraulic circuit breaker), available from 40 or 80 litres |
| 7 Room thermostat or chrono-thermostat (not supplied) | 8 Hydronic circuit (circulator and regulation not supplied) |
| 9 Direct expansion terminal, F-wall | 10 Sanitary recirculation pump, if any. Not supplied and not controlled by F-idro. |
| 11 Outdoor climate sensor |
