VKD buffer tanks

Buffer tanks with diffusing pipes

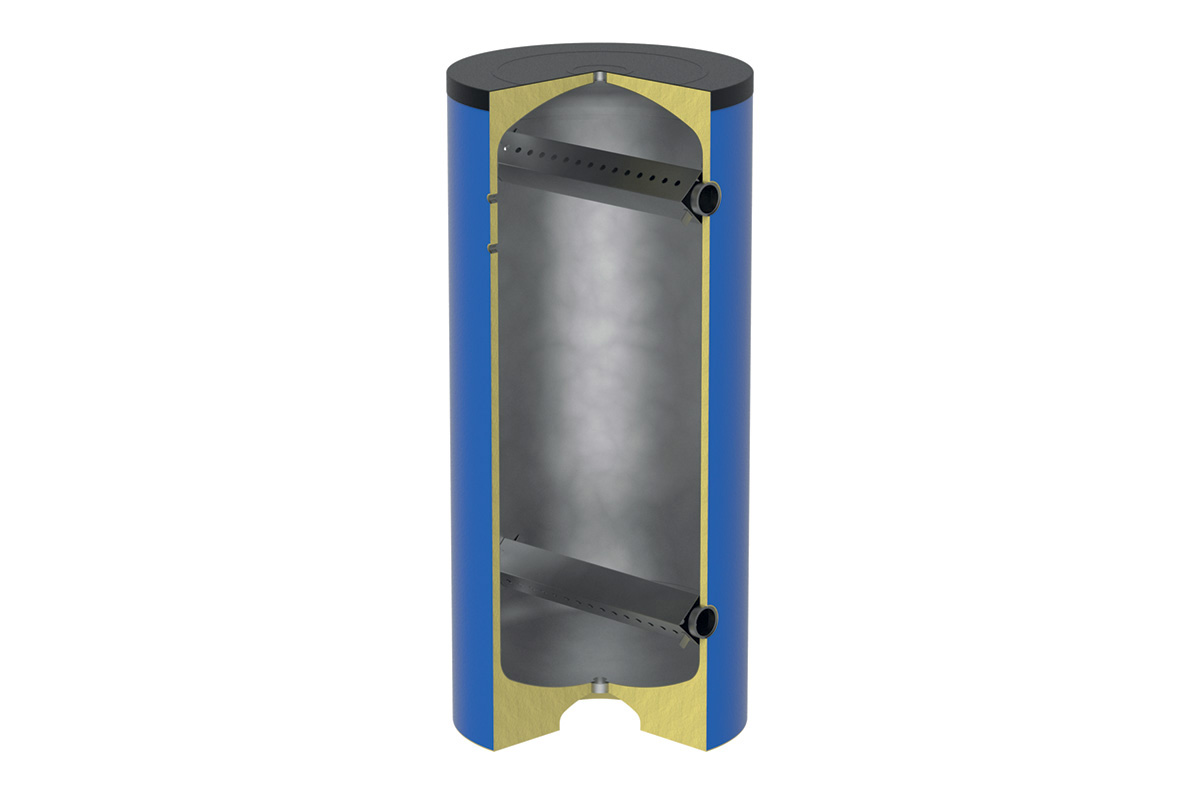

VKD buffer tanks with diffusing pipes are insulated to only contain chilled water and are normally used to increase the thermal inertia in conditioning systems.

They have diffusing pipes which make the temperature more uniform and which connect directly to the two circuits inside with tank.

By means of the diffuser’s circumferential holes, energy is given to or taken from the storage tank, reducing to the minimum any mixing within the tank.

VKD buffer tanks are recommended for systems in which there is not a particularly high need for protection against corrosion. They are suitable for double loop applications and are available in a vertical version with PVC exterior coating.

FEATURES

Capacity range

From 100 to 5000 Litres

Material

Carbon steel S 235 JR

Insulation

PU-R/PE

Coating

PVC

Operational limits

-10°C + 60°C/6 bar

Usage

Hydronic conditioning
